Sensor Status Page

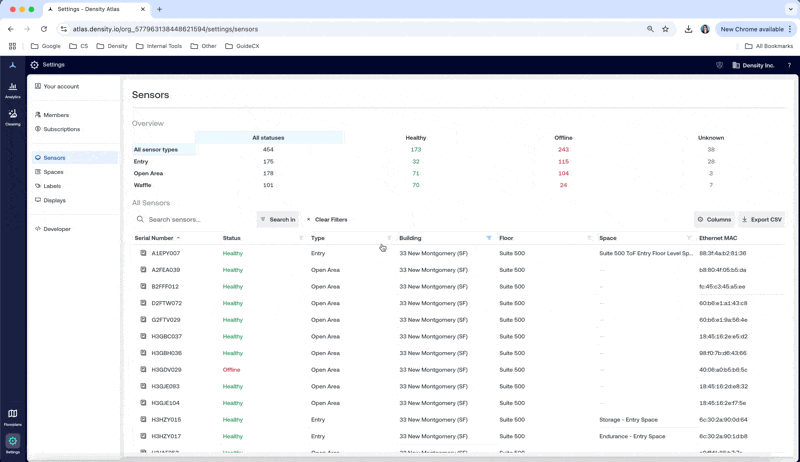

1. Go at atlas.density.io

2. Click the Settings icon in the bottom left side of the screen

3. Go to Sensors

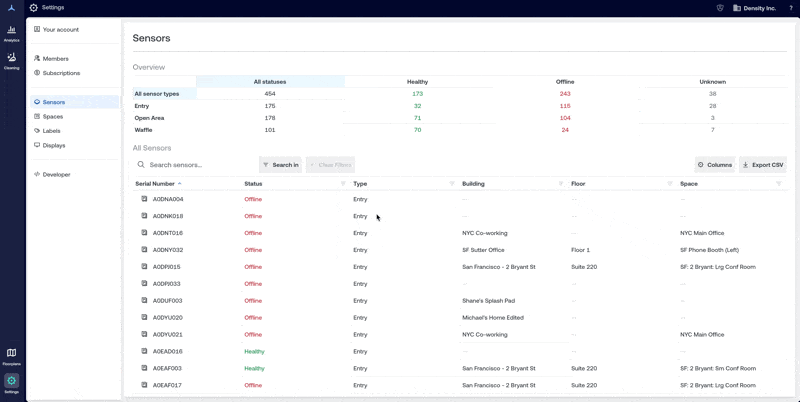

4. You can navigate and filter two ways in the Sensors page. Use the chart at the top of the page to filter all sensors by the different categories. Click to see all offline or online sensors of your choice.

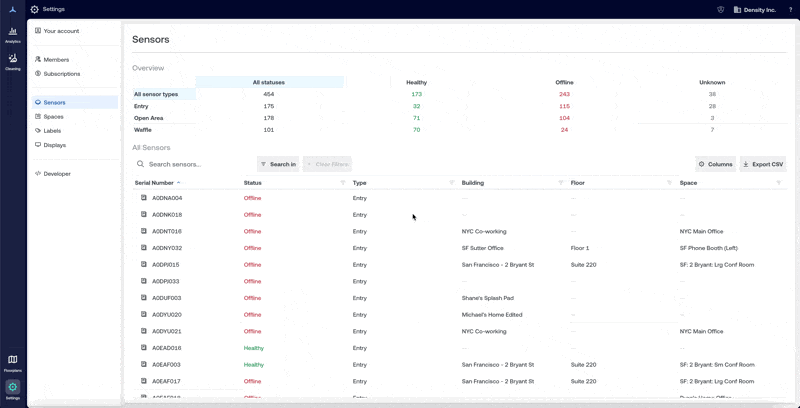

5. You can also use the columns to sort details. Click the filter icon next to the column type to select the options. Available columns include:

• Status
• Sensor Type
• Building
• Floor
• Space
• Firmware
• Ethernet MAC
• WiFi MAC

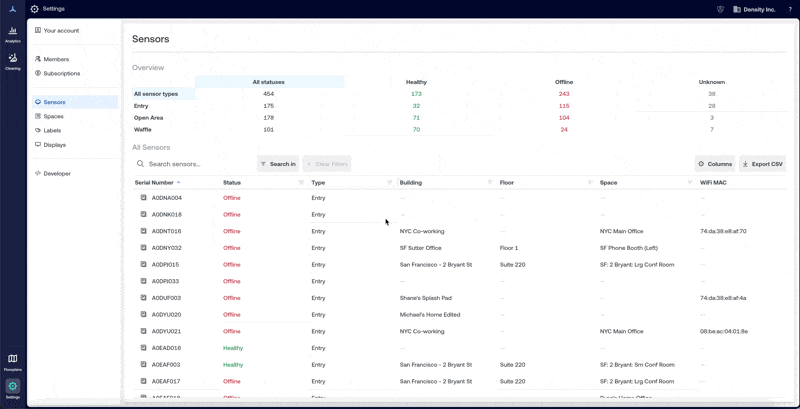

6. Adjust the columns shown on the page by clicking Columns and selecting the relevant details

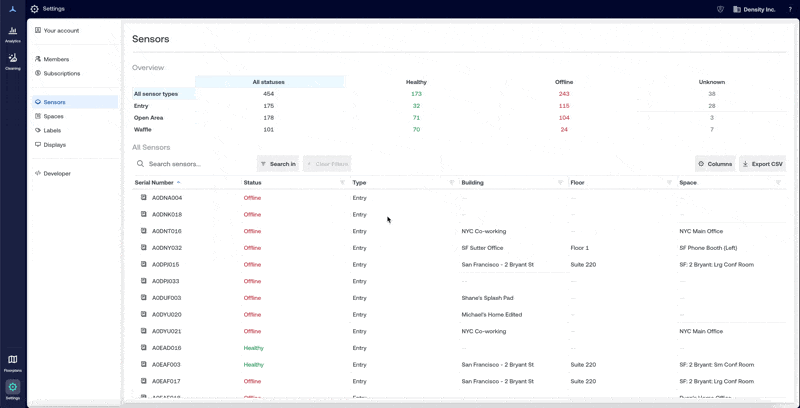

7. See specific sensor information by clicking the details icon next to the serial number. This will bring up:

• Basic Information
  • Status: Online/offline
  • Last Status Change: Timestamp of change to online/offline
  • Type: Entry, Open Area, Waffle
  • Hardware Type: Version of the sensor type
  • Firmware Version: Current OS
  • Ethernet MAC: MAC address
  • WiFi MAC:MAC address
• Location Information
  • Buildings
  • Floors
  • Spaces
• Health History
  • All status changes and timestamps for the last 9 days

8. Search by serial and building by default, or add in new fields by clicking search in and adding options

9. Export the current view of filters and columns by clicking on the Export CSV button

To see your sensor locations on a floorplan, see Sensor Status - Floorplan View. Floorplans must have been provided during initial setup.
