Entry Technical Specifications v1

Note: A downloadable PDF version of this guide can be found at the bottom of the article.

Technical Specifications

Entry Sensor Version s5b (lid with ceiling mount threads)

01 — In the Box

02 — Hardware

01 - In the Box

Product

• Entry Sensor
• Legal Information Booklet
• Quick Start Guide

Wall Mount Kit

• Wall Bracket (temporarily installed on sensor)
• Hex Key (2mm)
• 2pcs #8 x 1.25in Rounded Head Screws
• 2pcs Toggler Multi-Surface Anchors
• Rubber Plug

02 - Hardware

Alternative Mounting (Available For Order)

• Ceiling Mount Kit
• Door Frame Mount Kit
• Glass/Metal Adhesive Mount Kit

Sensors

Depth Sensor utilizing Class 1 Eye Safe Infrared Lasers

Operating Temperature & Humidity

• Indoor Rated Only
• Temperature: 32 - 95 F (0 - 35 C) with minimum 3in (7.6cm) clearance above the sensor
• Relative humidity: 20% to 80% non-condensing

Indicators

Multi-color status LED

Unit Weight

1.4lbs (0.59kg)

Certifications

Certified Class 1 Eye Safe Laser Device

• EN/IEC 60825-1 2014 (2007 USA)

FCC Part 15 Subpart B Class A

• Conducted Emissions (15.107)
• Radiated Emissions (15.109)

CE Certification

IEC 60950-1:2009 Product Safety

EN 55032:2012

EN 301 489-1

RCM Mark (Australia & New Zealand)

RoHS2 Compliant

COO (country of origin): US

HS Code: 8471.90.0000

ECCN: EAR99

Dimensions and Features

• Enclosure Material: Anodized Aluminum
• Window Material: IR PMMA Plastic
• Removable Mount Arm
• 1/4in-20 threads for ceiling mounting

Interface

• 1x 10/100/1000 Base-T RJ45 interface
• 1x USB 2.0 Port for WiFi/Bluetooth dongle
• Reset Button

Labels

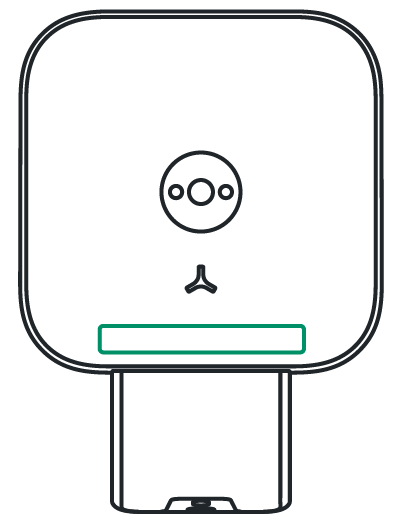

Serial Label: Appears on the sensor as shown.

MAC address

Can be found on the side of the box that the sensor came in.
