Pre-Install Assessment Guide

Sensor Version s5b (lid with ceiling mount threads)

01 — Entryway Guidelines

02 — Creating an Installation Plan

03 — Entryway Photographs

04 — Mounting Options

01 - Entryway Guidelines

Number of Sensors

To maintain an accurate count of a space, you need to install a sensor above every entryway to that space.

The sensor is designed for indoor use only.



Field of View / Placement

The total detection area beneath the sensor is called the FOV (Field of View). To count people, the entryway needs adequate FOV coverage. Refer to the Install Height Chart to determine the minimum sensor height for your entryway.

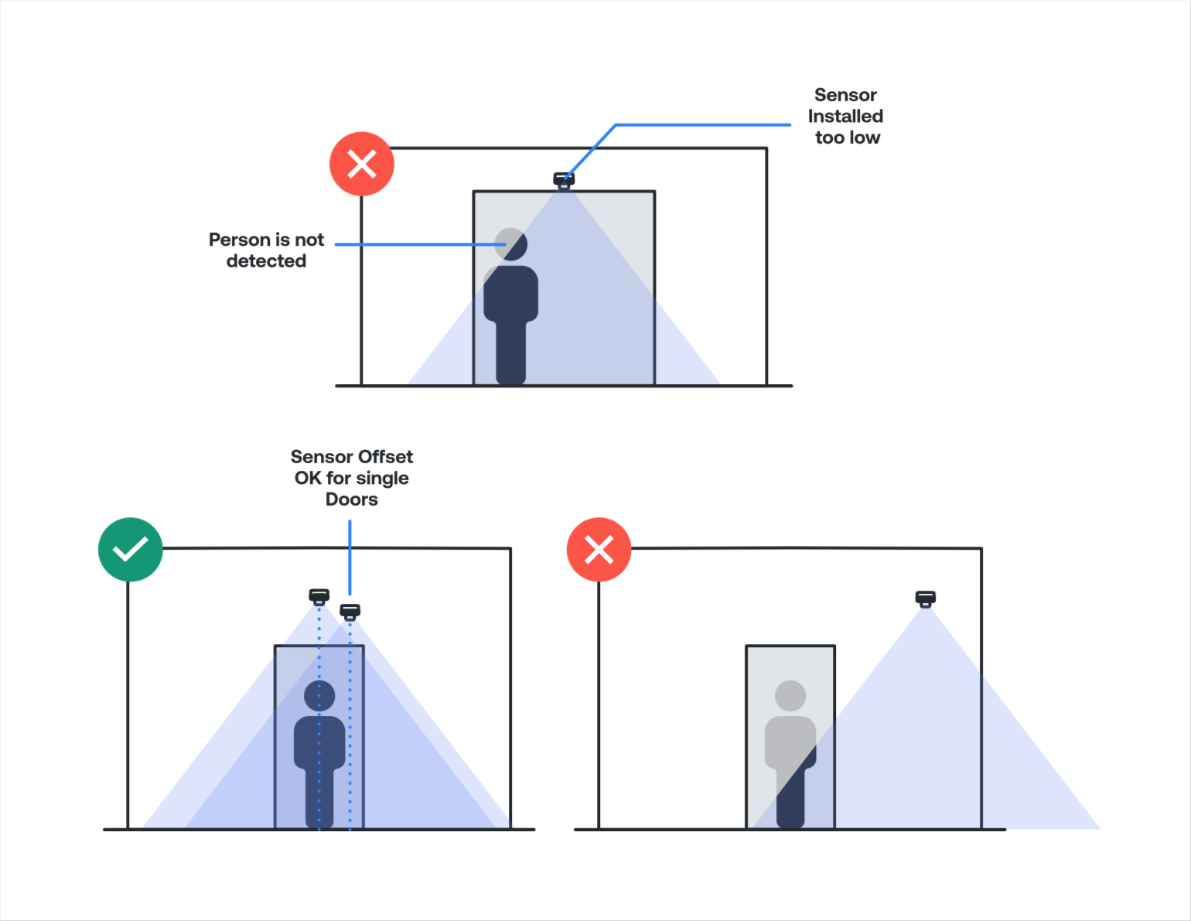

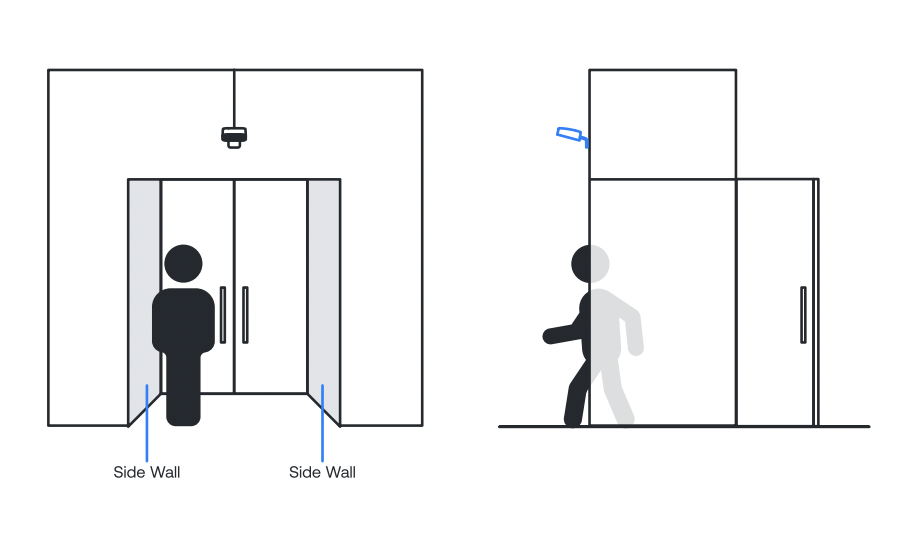

The sensor should be centered horizontally above the entryway or hallway to ensure people are detected within the field of view. The exception to this rule is if the sensor height is at 100in (254cm) or below and the sensor is being mounted over a single swinging door. In this case, a sensor offset of 10in (25.4cm) will be needed. See Single Door Specifics Section.

The sensor cannot be mounted inside of the ceiling, on a side wall facing the entryway, or in the corner of a room.

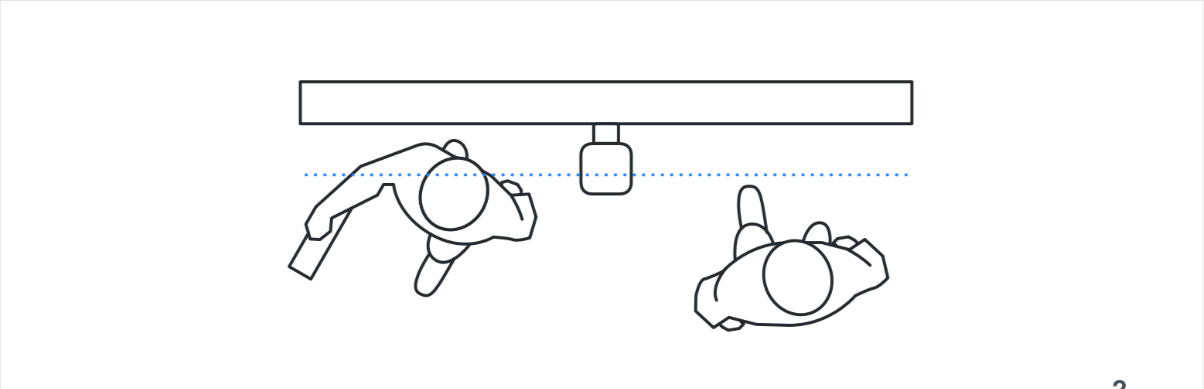

​​Trigger Line

People are counted as they cross an invisible barrier known as the Trigger Line. The sensor needs to be installed as close to the entryway as possible to ensure people cross this line.

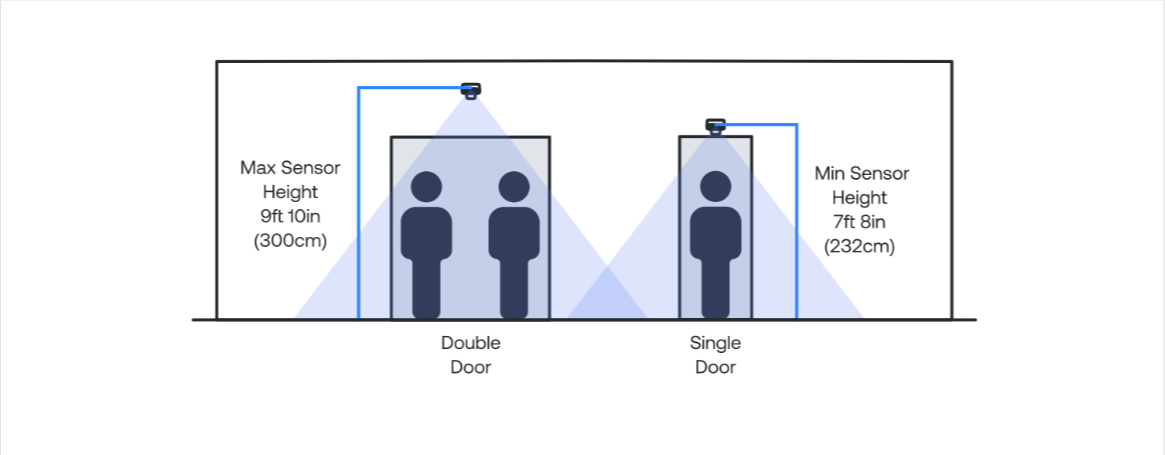

Install Height

The higher the sensor height, the greater the entryway FOV (Field of View) coverage. Install the sensor at its maximum height of 9ft 10in (118in or 300cm) for optimal entryway coverage. The minimum install height for the sensor is 7ft 8in (232cm). Refer to the Install Height Chart.



Sensor Height

Adequate sensor height is very important to ensure proper FOV coverage of the entryway. The Sensor Height is determined by measuring the distance between the front edge of the sensor or black window and the ground. The Wall Bracket Height is the distance between the bottom of the Wall Bracket and the ground. For wall mounted installations, Sensor Height can be determined by measuring the Wall Bracket Height and adding 2.5in (6.3cm) to that measurement.

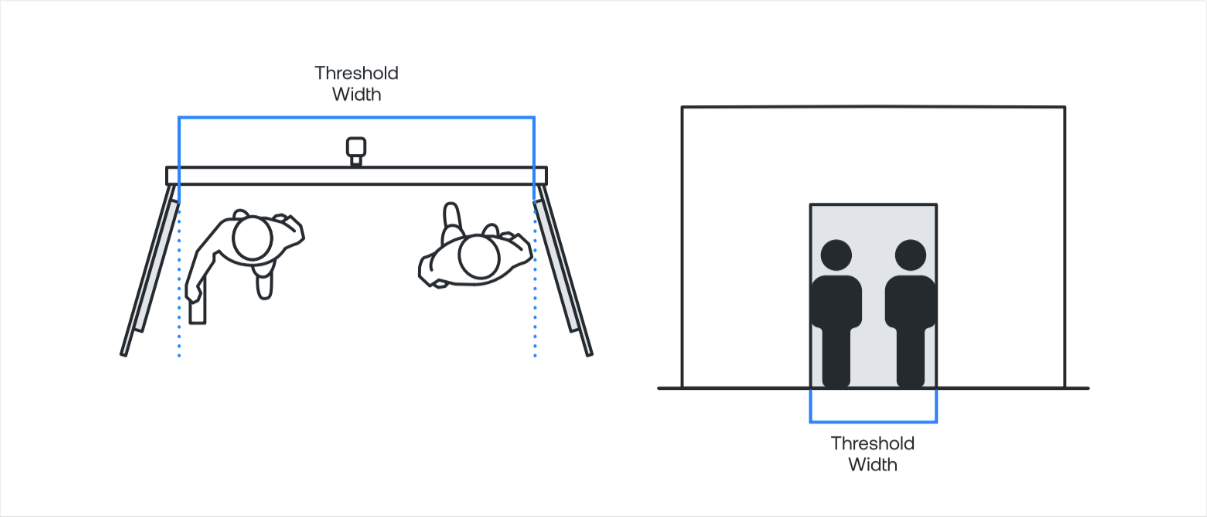

Threshold Width

To determine the Threshold Width of the entryway, measure the open space that a person can physically walk through. Doors with handles can restrict the walkable pathway and reduce the FOV coverage requirements. For entryways with doors, open the door fully and measure the width of the unobstructed path through the doorway.

For hallways or entryways with no doors, measure the distance from wall to wall.

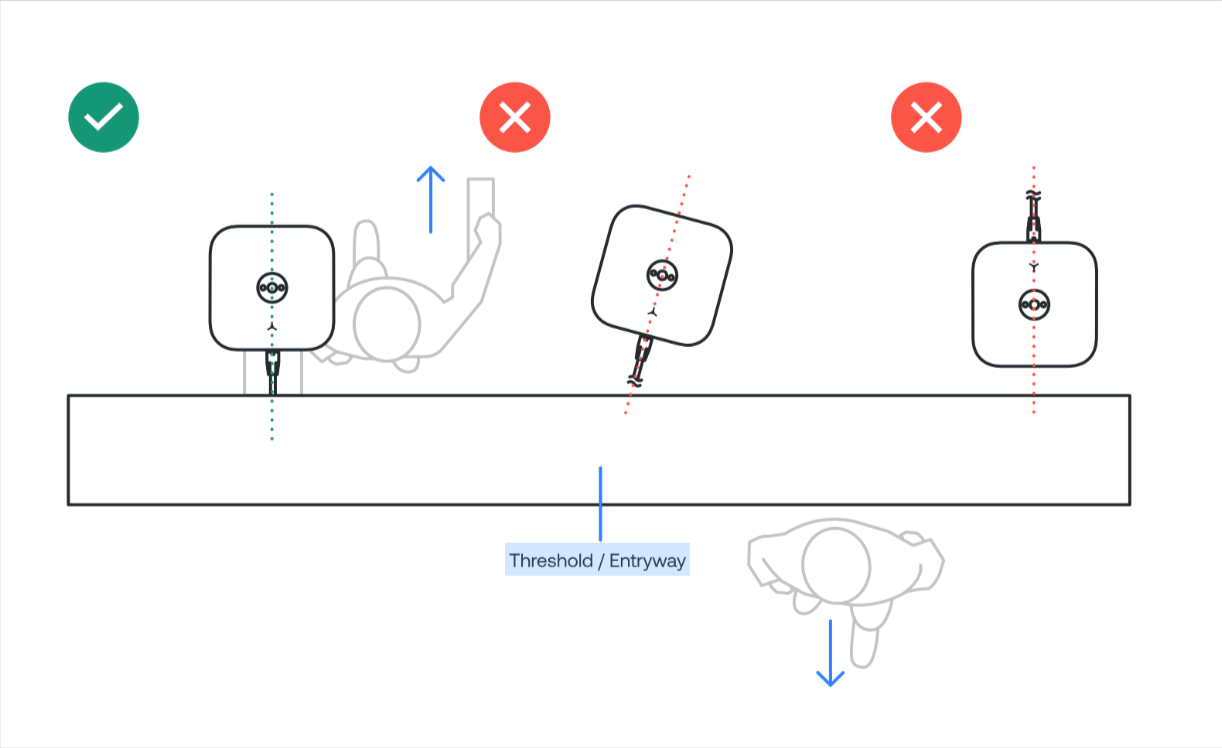

Sensor Orientation

The sensor must be positioned parallel to the flow of traffic. If mounted near an entryway, the sensor should be pointing away from the wall.

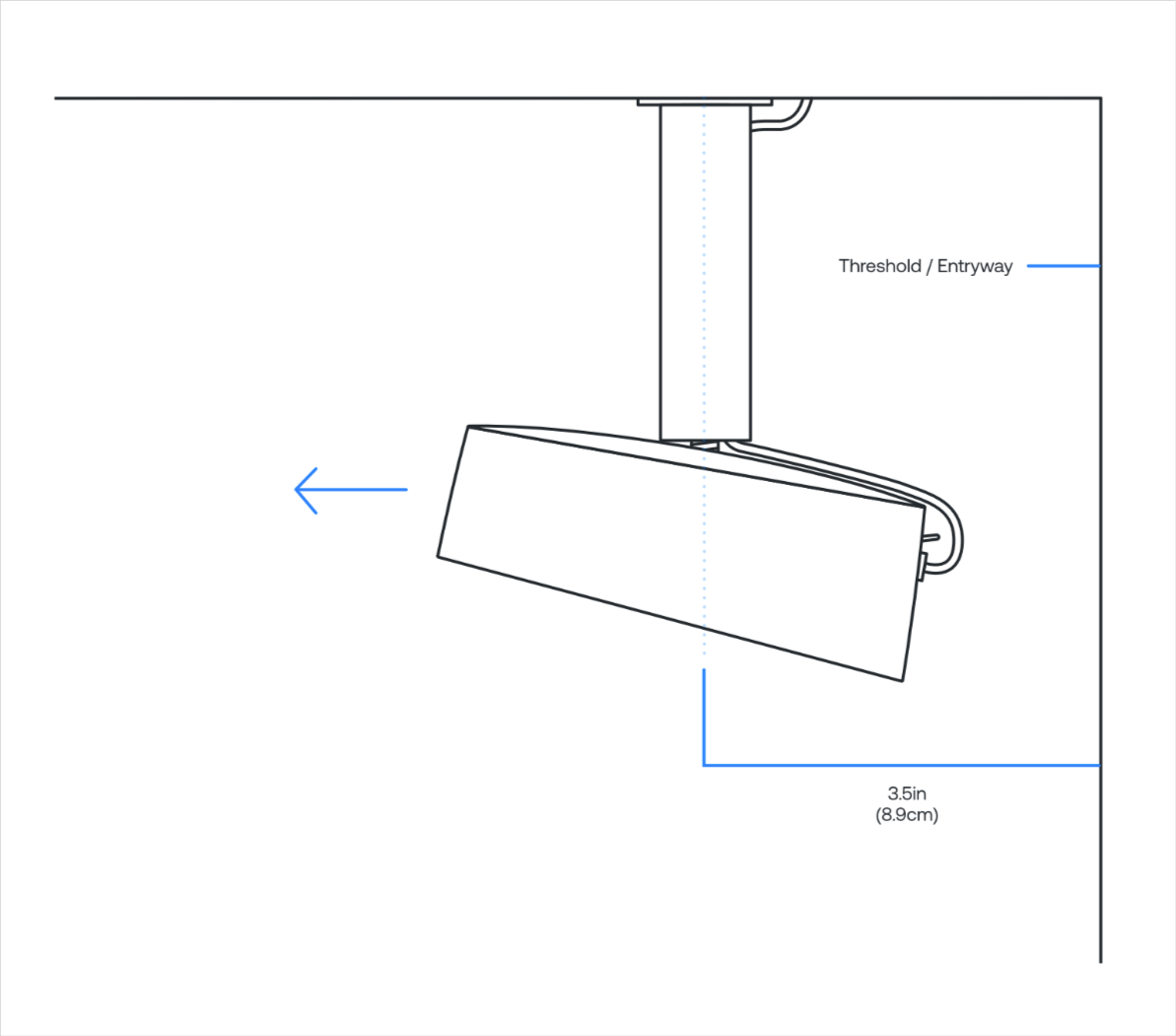

Sensor Positioning

When mounting the sensor to the ceiling, make sure that the sensor is not mounted too close or too far away from the entryway/threshold. The optimal position for the threaded rod is 3.5in (8.9cm) away from the threshold/entryway.

In some cases, obstructions or other environmental issues may call for the sensor to be installed outside of these guidelines. Any deviation from the guidelines should be under direct consultation of an account representative.



Door Frames

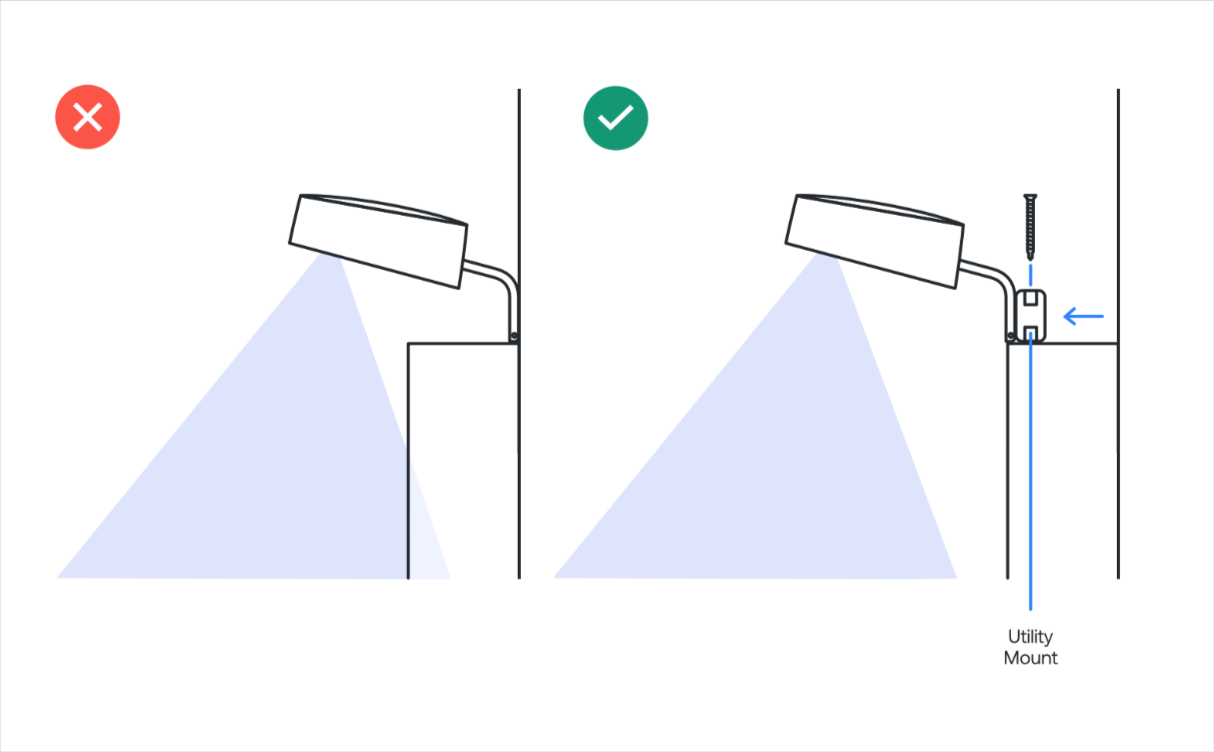

Installing the sensor near a door frame can cause potential FOV interference. If your installation requires a door frame mount, make sure to position the sensor towards the front edge of the door frame.



Door Swing

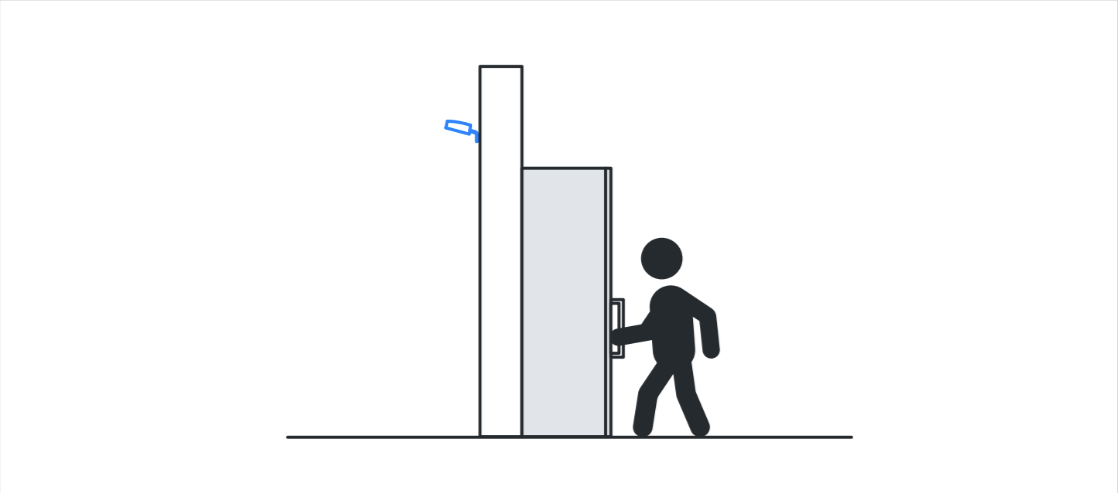

The sensor performs best when mounted on the non-door swing side of the entryway.

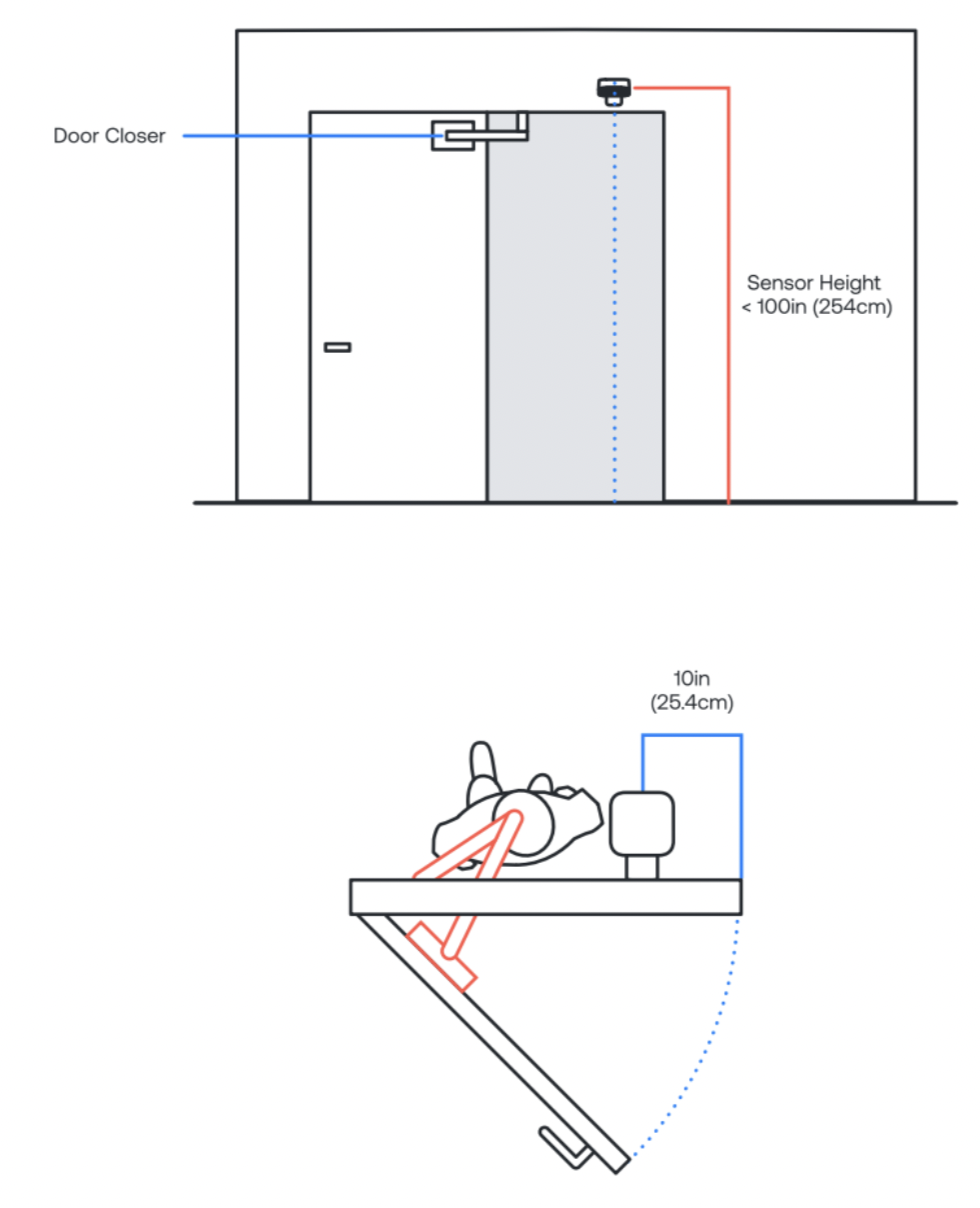

Single Door Specifics

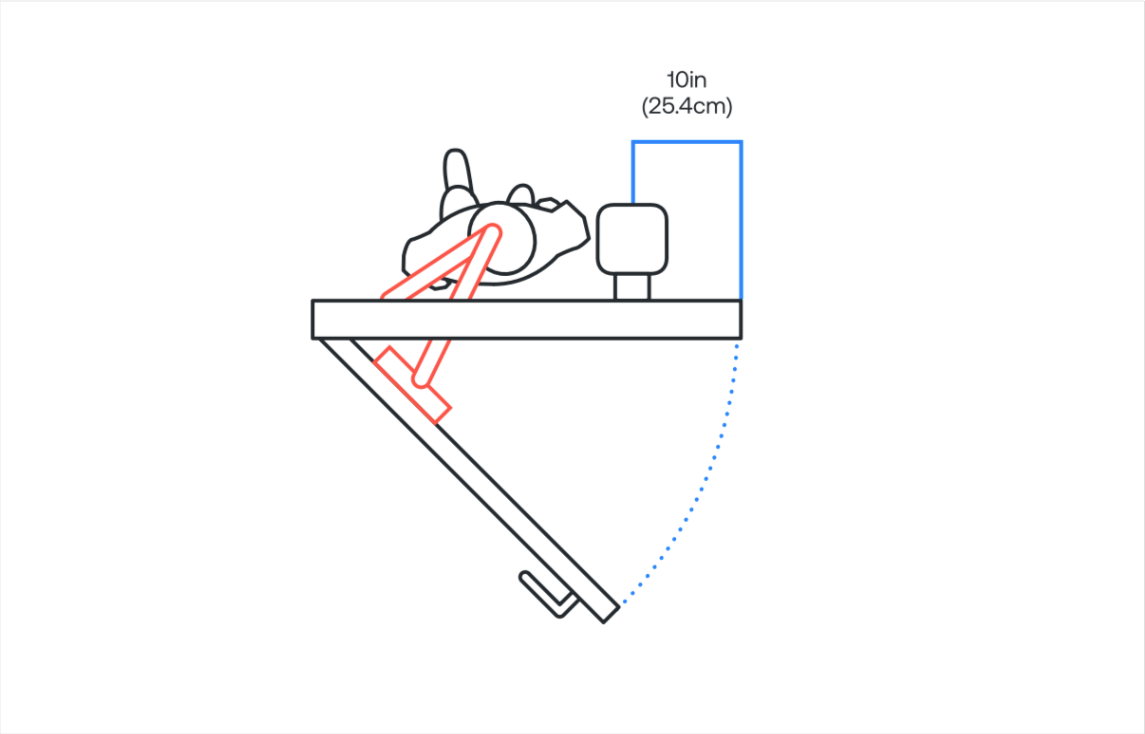

For some single doors, the optimal sensor placement is closer to the handle side of the door. Mount the sensor approximately 10in (25.4cm) away from the handle side of the door if your single door meets any of the below criteria:

• The sensor height is 100in (254cm) or less

• A door closer swings under the sensor

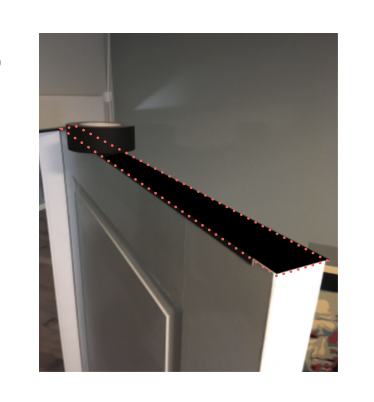

Black Tape

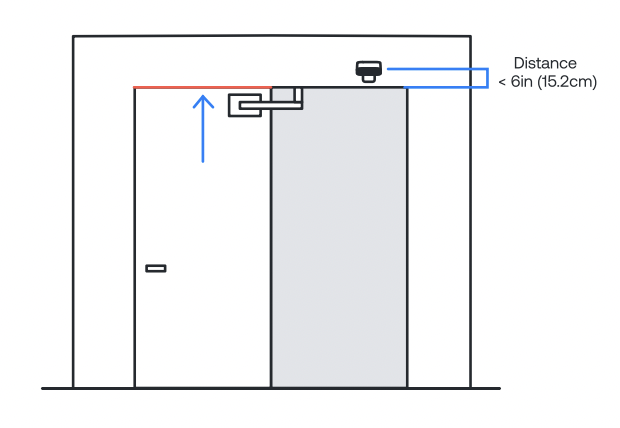

If the sensor is mounted too close to a swinging door, the IR light emitting from the sensor will bounce off of the top surface of the door and cause interference with the sensor. If the door swings underneath the sensor, and the distance between the sensor and the top of the door is 6in (15.2cm) or less, apply a strip of black painters or gaffers tape to the entire top surface of the door. Make sure to trim off any excess tape. The tape will help absorb the emitted sensor light, and mitigate any interference.

* Metal doors cause extreme light reflection at any sensor height. If your door is made of metal, apply a strip of black tape to the entire top surface of the door regardless of sensor height.

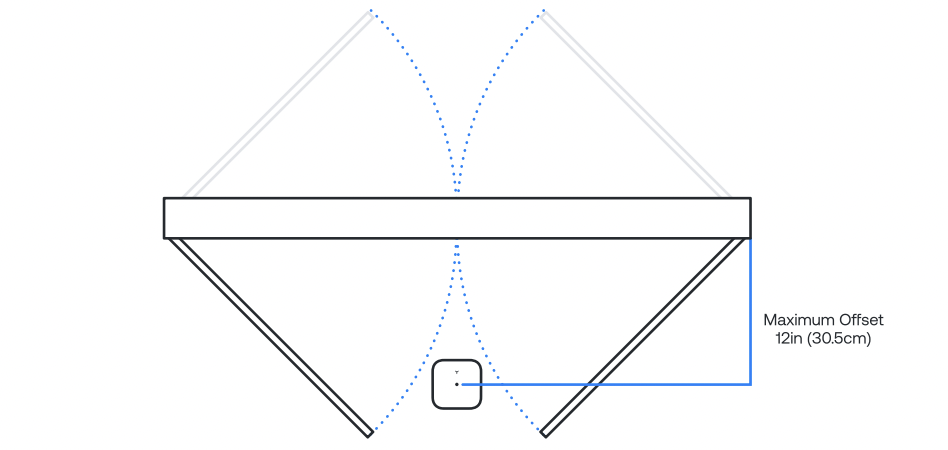

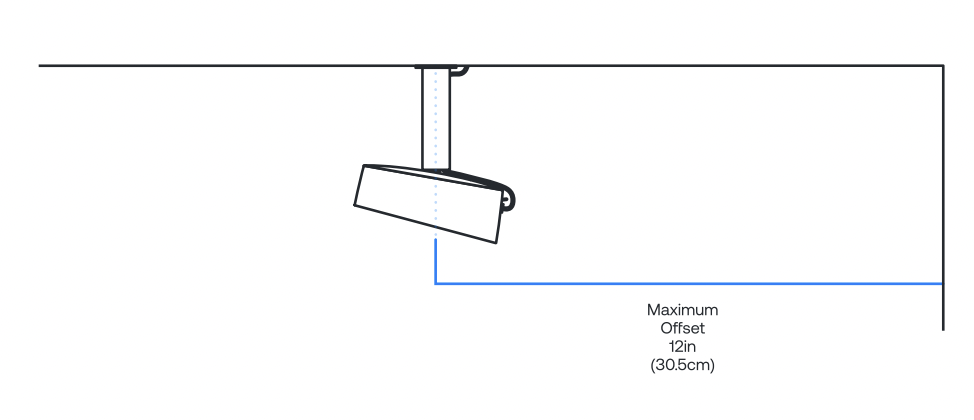

Door Swing Offset

Doors that swing both directions, and that are flush with the ceiling require the sensor to be ceiling mounted and offset away from the swinging door to avoid any collision. The maximum offset distance for the sensor is 12in (30.5cm), measured from the wall to the center of the sensor.



Overhang

Some doorways have a structural overhang which would prevent the sensor from being installed above the door at the optimal mounting height. The sensor can be offset from the door and mounted above the opening of the overhang. The opening will act as an extension of the door entryway. In order for the overhang mount to work, there needs to be structural side walls to confine human movement to the area beneath the sensor.



Install Height Chart - Single Sensor

To determine the necessary sensor height for a given threshold, first measure the threshold width (the physical opening that a person can walk through), then refer to the Install height Chart for the minimum sensor height. Use the minimum sensor height as the starting measurement for the Mounting Zone. The upper measurement of the mounting zone will be the overall maximum sensor install height of 118in (300cm). Mount the sensor near the center of the Mounting Zone.

* If the sensor height is at 100in (254cm) or below and the sensor is being mounted over a single swinging door, a sensor offset of 10in (25.4cm) will be needed. The sensor is offset to be positioned over the handle side of the door so coverage is emphasized on the side that people walk through the door. See Single Door Specifics.

If your entryway falls outside of these guidelines, additional sensors may be needed. Please reach out to your account representative or support@density.io



Clearance

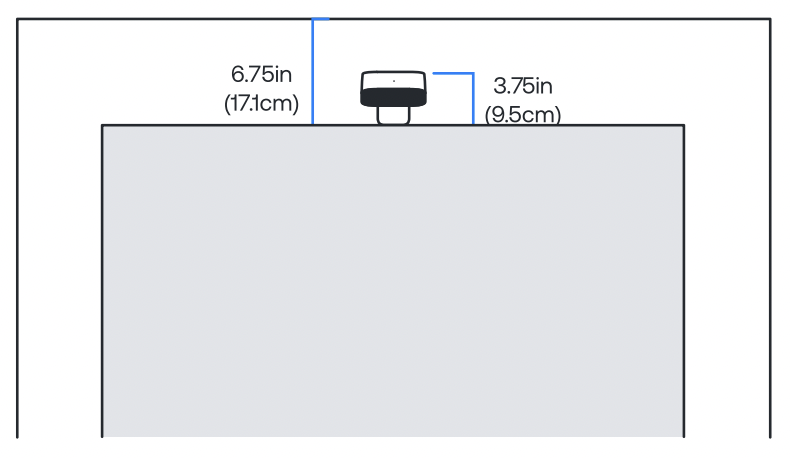

For standard wall mount installations (section 5), a minimum of 6.75in (17.1cm) of unobstructed vertical wall space is required above the entryway. This allows enough clearance to mount the sensor, and for the sensor to receive adequate air flow to operate as expected.

For ceiling mount installations, the sensor cannot hang below the entryway if the door swings toward the sensor as the door will make contact. If the door swings toward the sensor, the sensor must be offset away from the door (see Door Swing Offset section).



Hallways

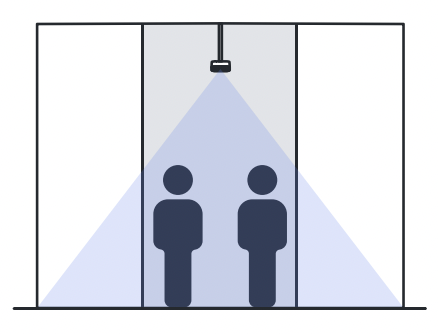

In certain scenarios the sensor can be suspended over hallways using a threaded rod and a Ceiling Mount Kit.

Make sure to follow the Install Height Chart for hallway installs.



Multiple Sensors

If the entryway width is too wide and the sensor cannot be mounted high enough for ample FOV coverage, an additional sensor or two can be added. We recommend using fewer sensors when possible. However, one entryway can support up to 3 sensors in total.

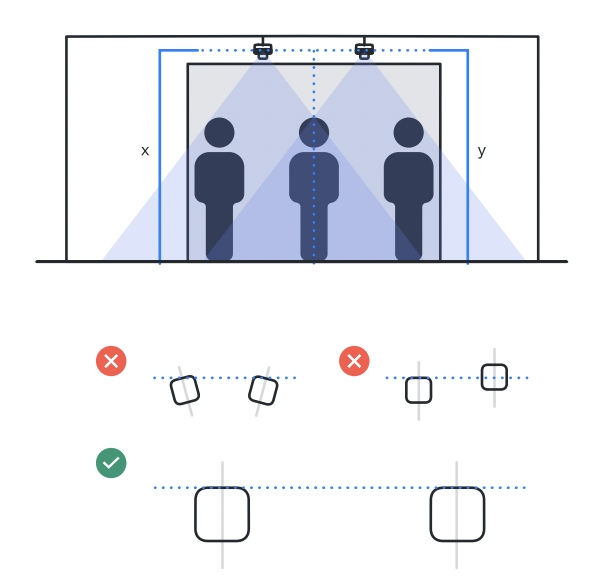

When installing multiple sensors, they should be mounted in line and parallel to each other, as shown.

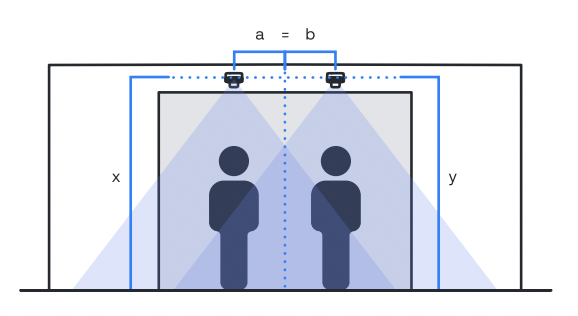

Multi Unit Spacing - 2 Sensors

For 2 sensor installs, the distance between the centerpoint of the entryway and the center point of the left and right sensors should be equal (a = b). The distance from the ground to the sensors should also be equal (x = y).

Make sure to record distance between sensor centerpoints, sensor height, as well as both sensor serial numbers.

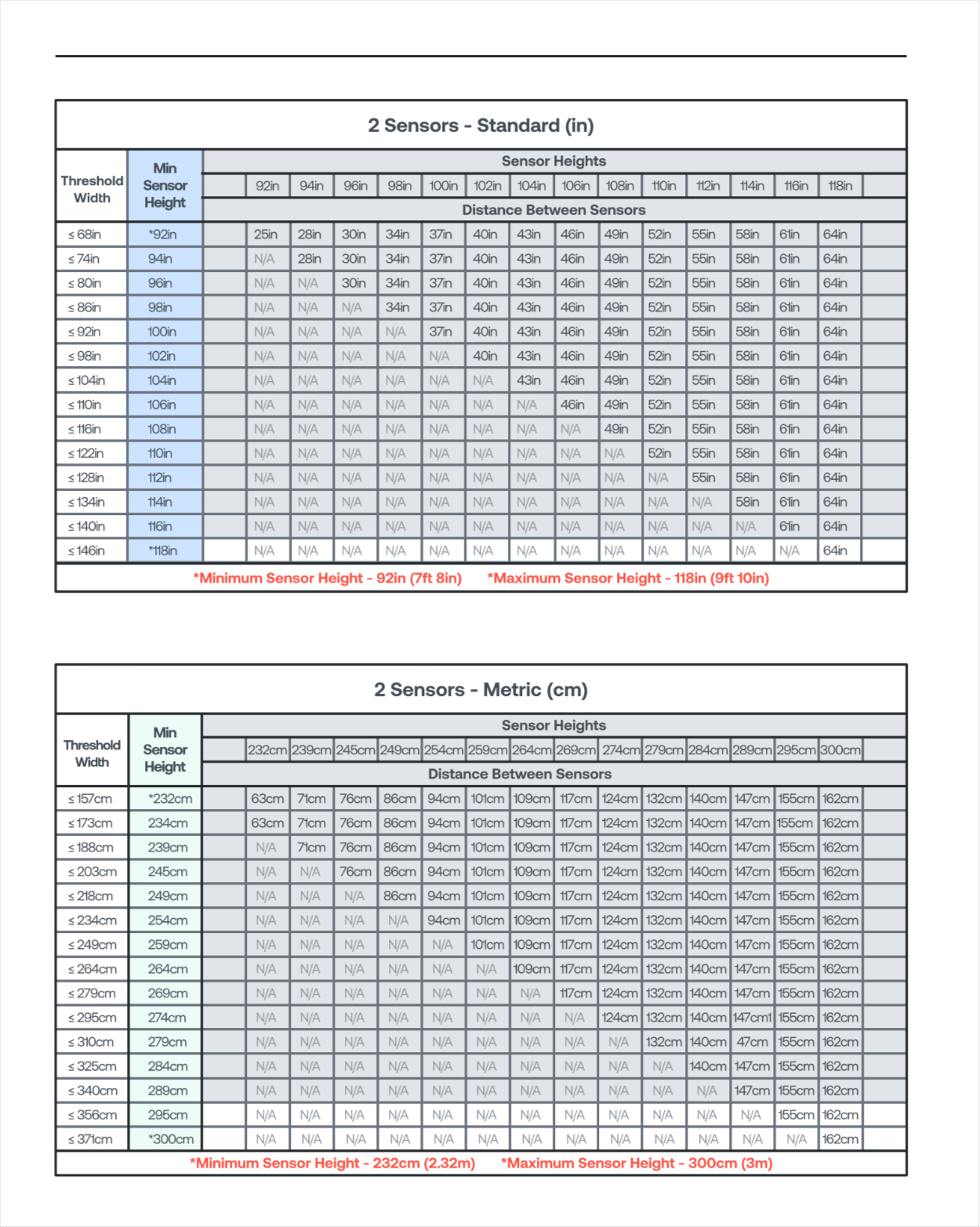

Install Height / Spacing Chart - 2 Sensors

The Install Height / Spacing Chart lists the minimum sensor height requirements for various threshold widths as well as the required distance between sensors.

To use the chart, measure the threshold width (the physical opening that a person can walk through), then look at the chart for the minimum required install height. Space the sensors over the threshold according to the Distance Between Sensors section of the chart. The minimum allowable distance between sensors is 22in (56cm), and the maximum allowable distance between sensors is 67in.

If needed, please reach out to your Project Manager for a walk through of the Install Height / Spacing Chart.

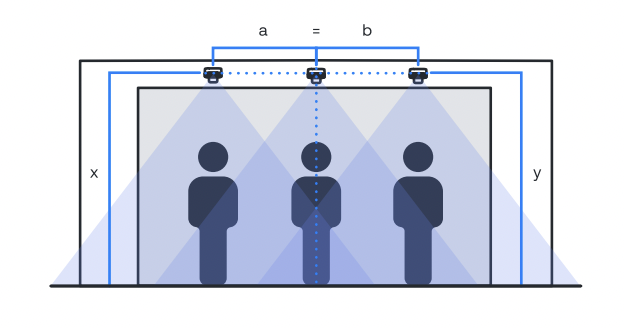

Multi Sensor Spacing - 3 Sensors

For 3 sensor installs, the distance between the centerpoint of centrally mounted sensor and the center point of the left and right sensors should be equal (a = b). The distance from the ground to the sensors should also be equal (x = y).

Make sure to record distance between sensor centerpoints, sensor height, as well as both sensor serial numbers.

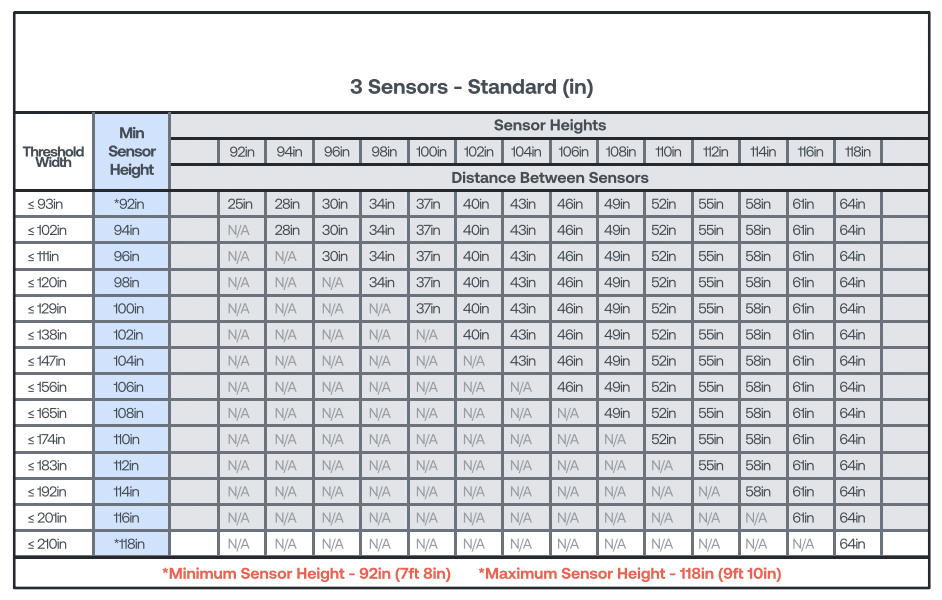

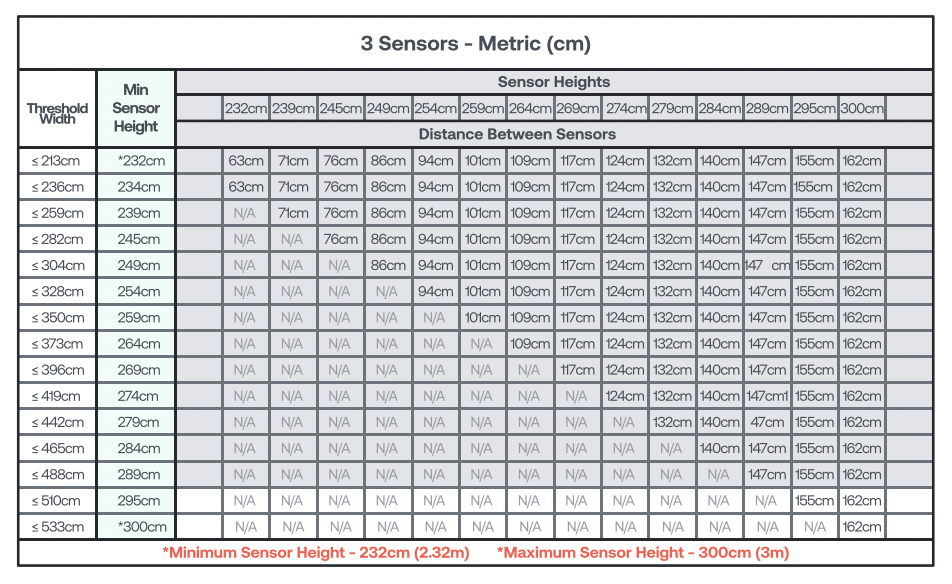

Install Height / Spacing Chart - 3 Sensors

The Install Height / Spacing Chart lists the minimum sensor height requirements for various threshold widths as well as the required distance between sensors.

To use the chart, measure the threshold width (the physical opening that a person can walk through), then look at the chart for the minimum required install height. Space the sensors over the threshold according to the Distance Between Sensors section of the chart. The minimum allowable distance between sensors is 22in (56cm), and the maximum allowable distance between sensors is 67in.





02 - Creating an Installation Plan

General Installation Checklist

Collecting adequate data and measurements for each entryway will help Density provide entryway-specific installation recommendations to maximize people-counting accuracy.

Reference the checklist below:

• Floor plan with each entryway clearly labeled (alphabetical or numerical reference system recommended)
• Device can be positioned horizontally over the entryway
• No obstructions to the FOV (e.g. exit signs, sensors, etc.)
• Recommended sensor install height of 2in-10in above the top of the door frame. (Please consult Density for more information)
• Available power through PoE+ connection (switch or injectort)
• Available internet connectivity through wired ethernet, or WiFi

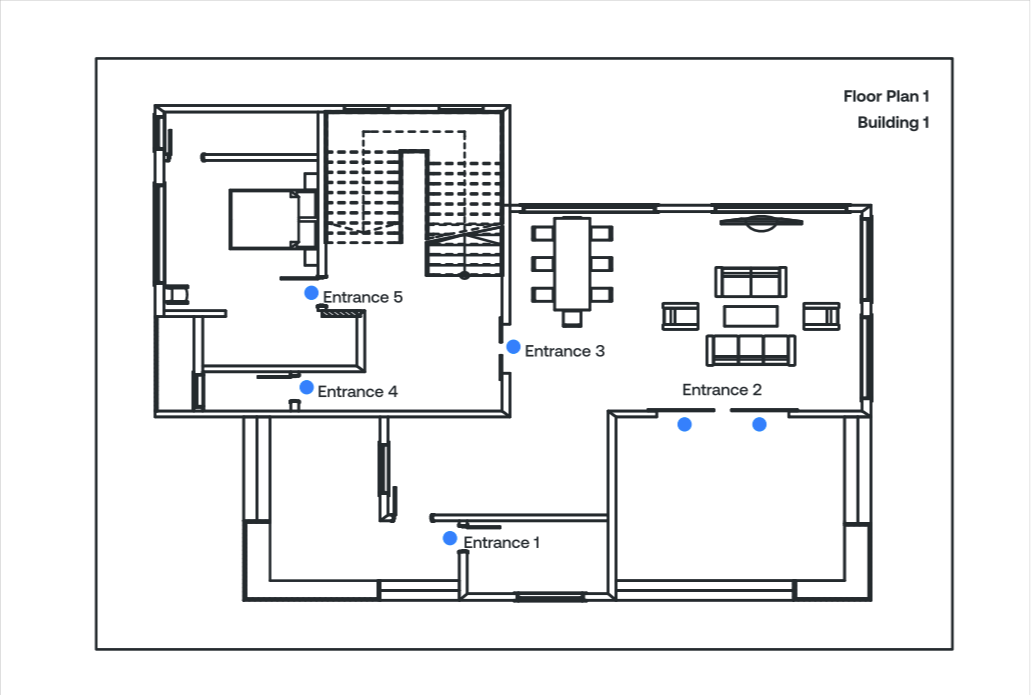

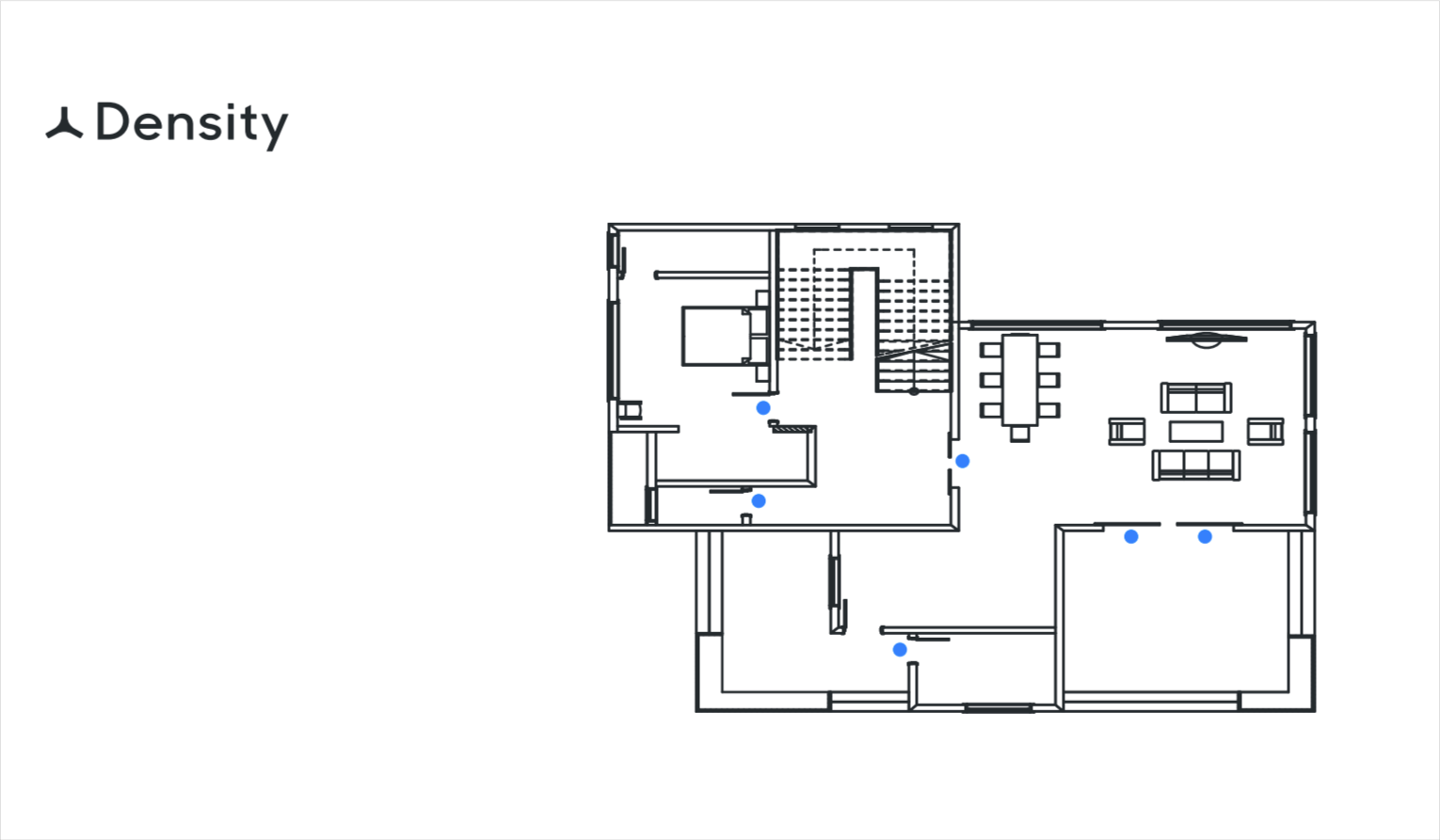

Floor Plans

In order to get an accurate count for any given enclosed space, all entries/exits for that space must be covered by a Density threshold sensor. Floor plans allow Density to determine the number and location of all Density sensors that need to be installed.

Action: Please provide up-to-date, high-fidelity floor-plans that include spaces to be measured and associated entranceways/exits.

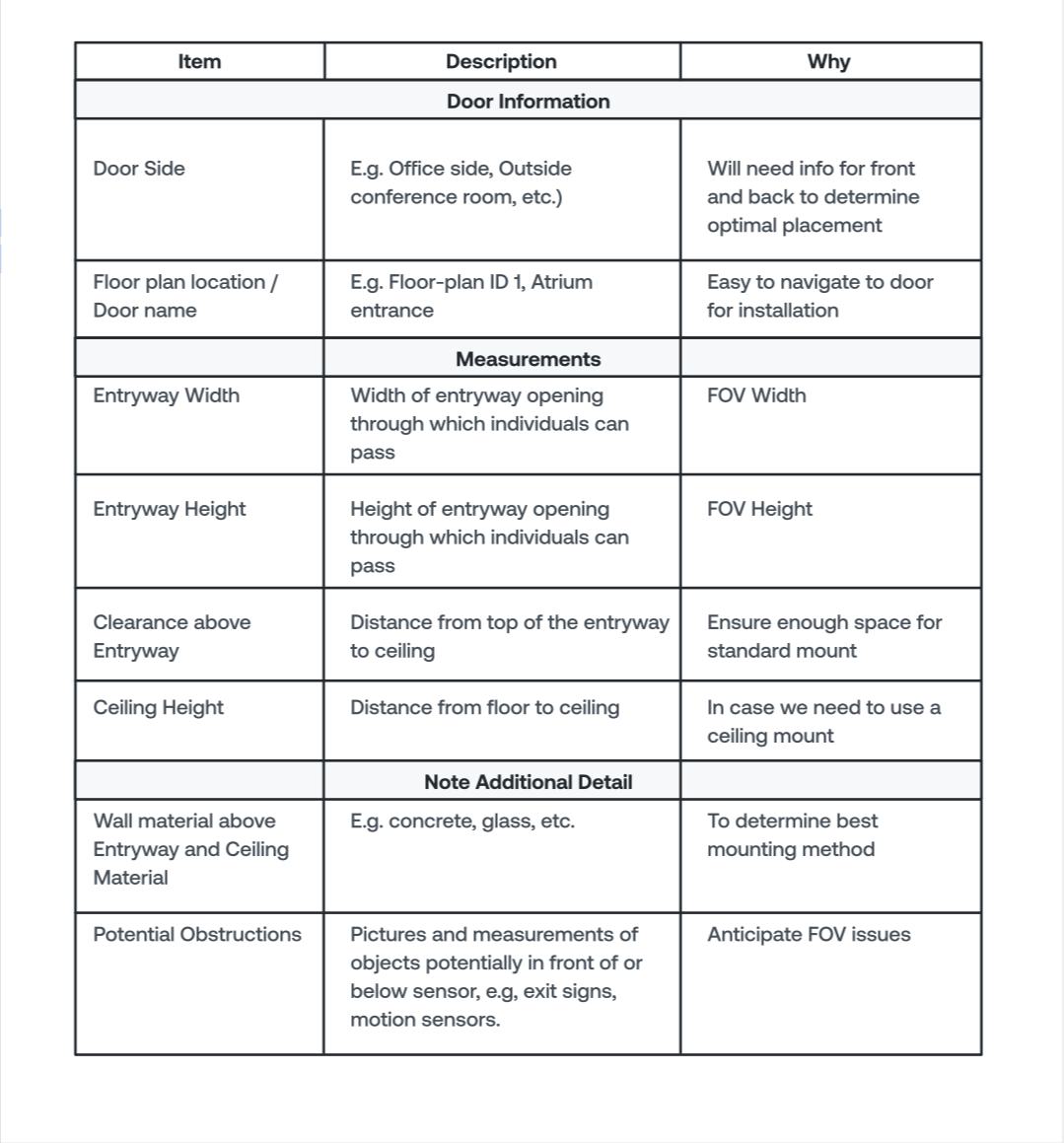

Entryway Measurements and Details

Entryway measurements allow Density to position a device at a given doorway to maximize accuracy.

Action: Please take the measurements and details listed here for each door that will be monitored by a Density sensor.



Entryway Photographs

Photographs are necessary to understand the possible mounting options, and to give a better understanding of the environment the sensor will be performing in.

03 - Entryway Photographs

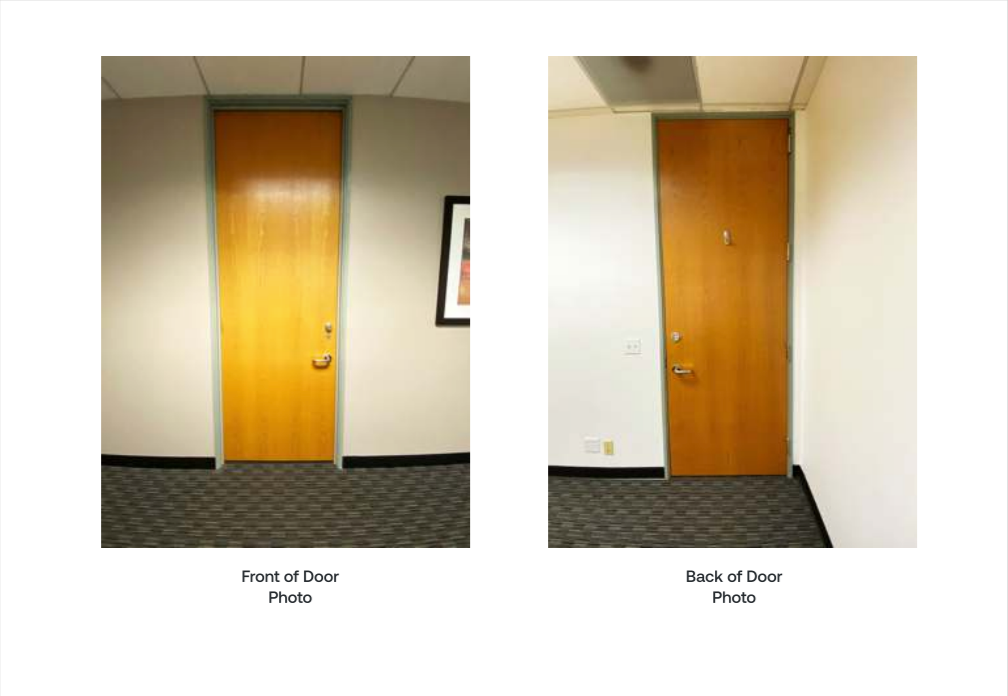

Entryway Photographs

Please provide Density with digital photos of each of the doorways.

For each doorway, provide the following photos:

• Facing the entryway head-on (Full-height of doorway, including clearance space above)
• Facing the entryway at a 45 degree angle (full-height of doorway, including clearance space above)
• Special photos of any potential obstructions or unique features of a particular entryway (optional)

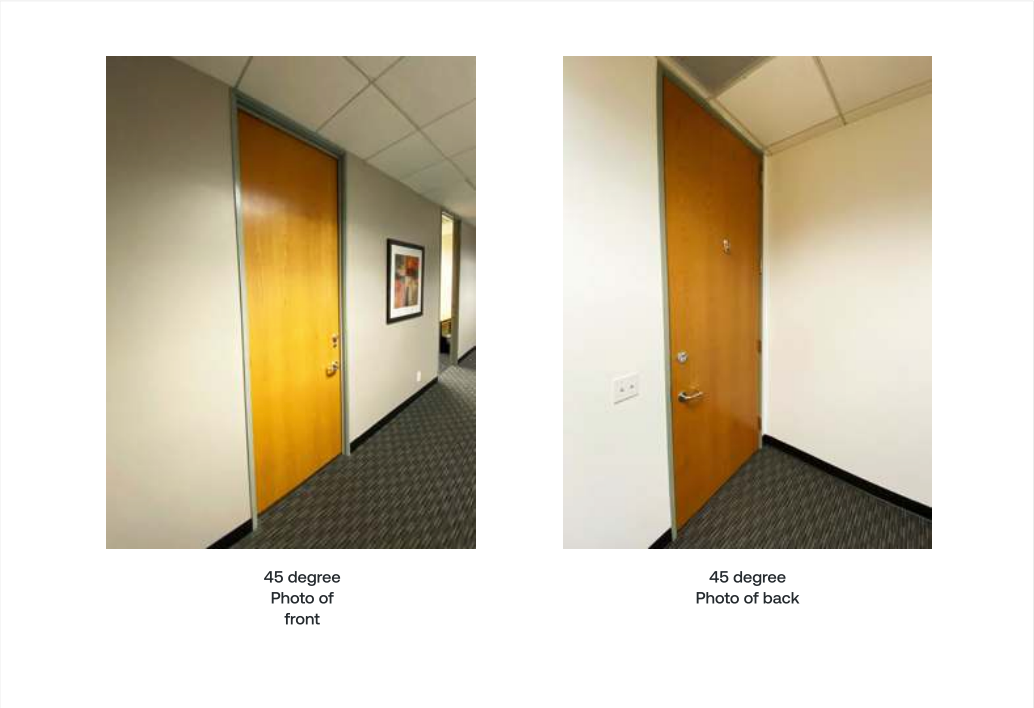

Example 45-degree Angle Photo

The full-length view and multiple angles of both sides of the door will allow us to anticipate obstructions or other unique characteristics that may impact the installation of the sensor.



Doorway-specific characteristics

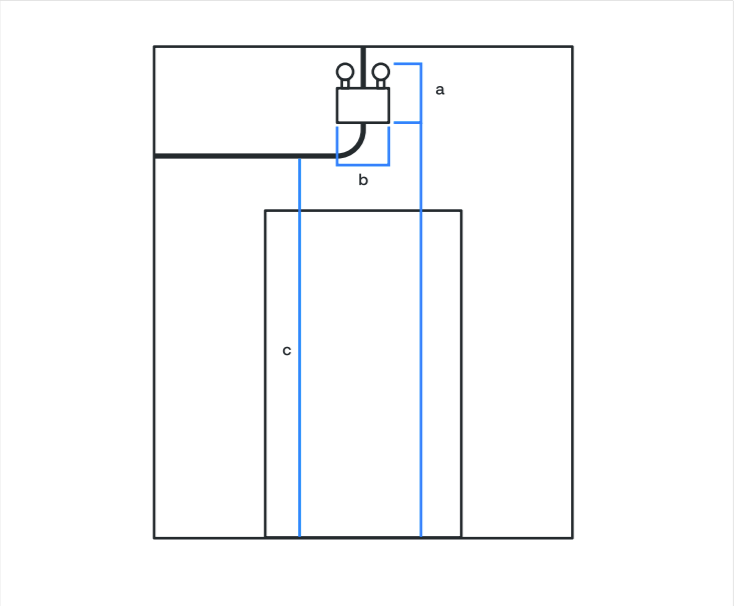

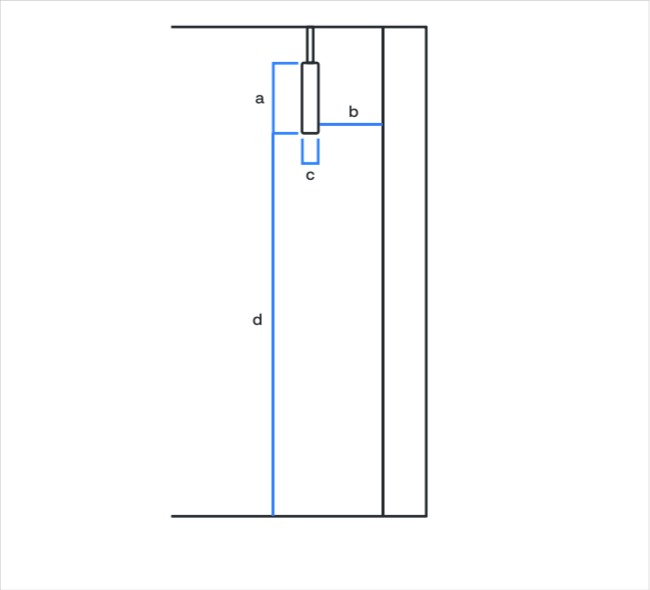

Exit Signs and Sensors:

Record measurements (a,b,c,d) of any exit signs or other peripheral sensors that may interfere with the physical installation or the FOV of the sensor.



Low Ceiling

For entryways with insufficient space for wall mounting, ceiling mounting will be required. Make sure to mount on the non-door swing side so the sensor and the door do not collide.



Miscellaneous Obstructions

Take photos and measurements of any miscellaneous obstructions above the entryway that may impact the sensor installation.





04 - Mounting Options

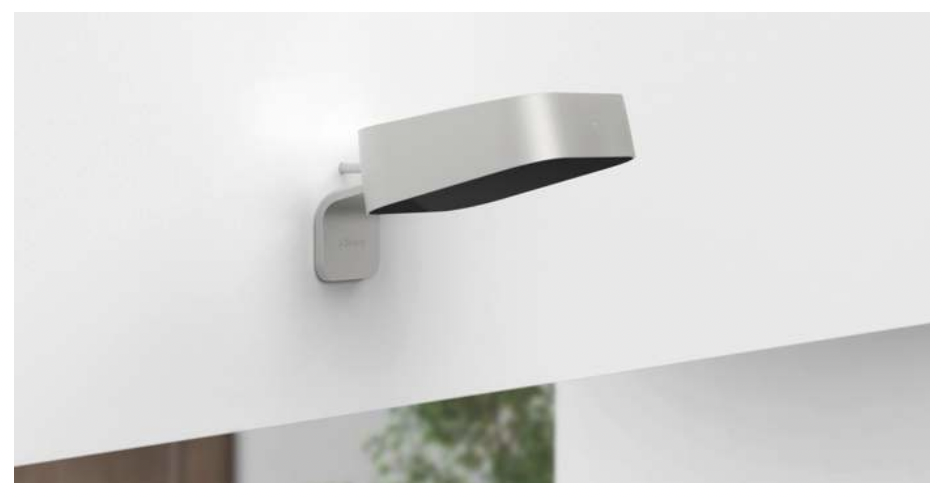

Standard Wall Mount

For mounting the sensor to a variety of wall types using the provided multi-surface wall anchors and screws.

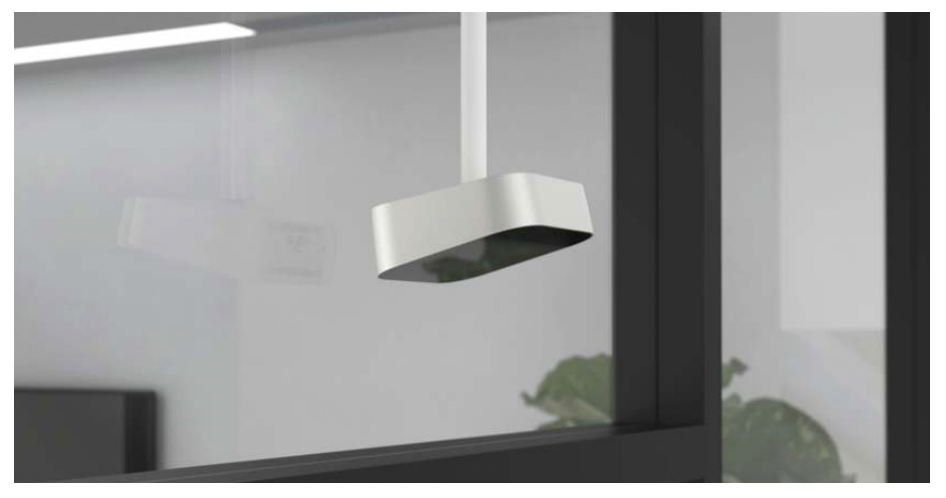

Ceiling Mount

For mounting the sensor to the ceiling in front of the entryway. Kit includes two options: A Toggle Anchor for hollow ceiling types like drywall or ceiling tiles as well as Threaded Rod and Expansion Anchors for a variety of solid surface materials like wood, metal, tile, stone & plaster.



Door Frame Mount (Top and Bottom)

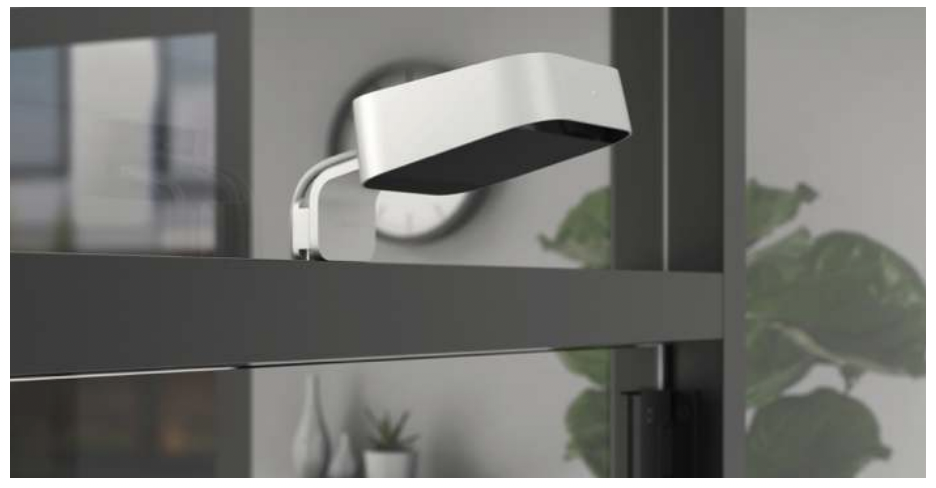

For mounting the sensor to the top or bottom surface of a wood or metal door frame.

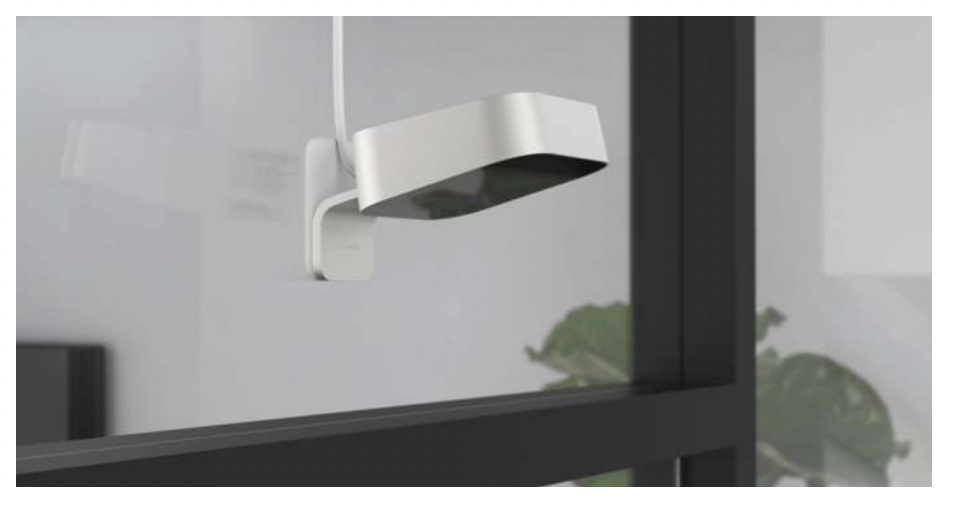

Glass/Metal Wall Mount

For mounting the sensor to a smooth glass or metal surface with semi-permanent adhesive.

Refer to section 12 for more details and mounting instructions.
