Taking Pictures and Measurements of Doorways for the Entry Sensor

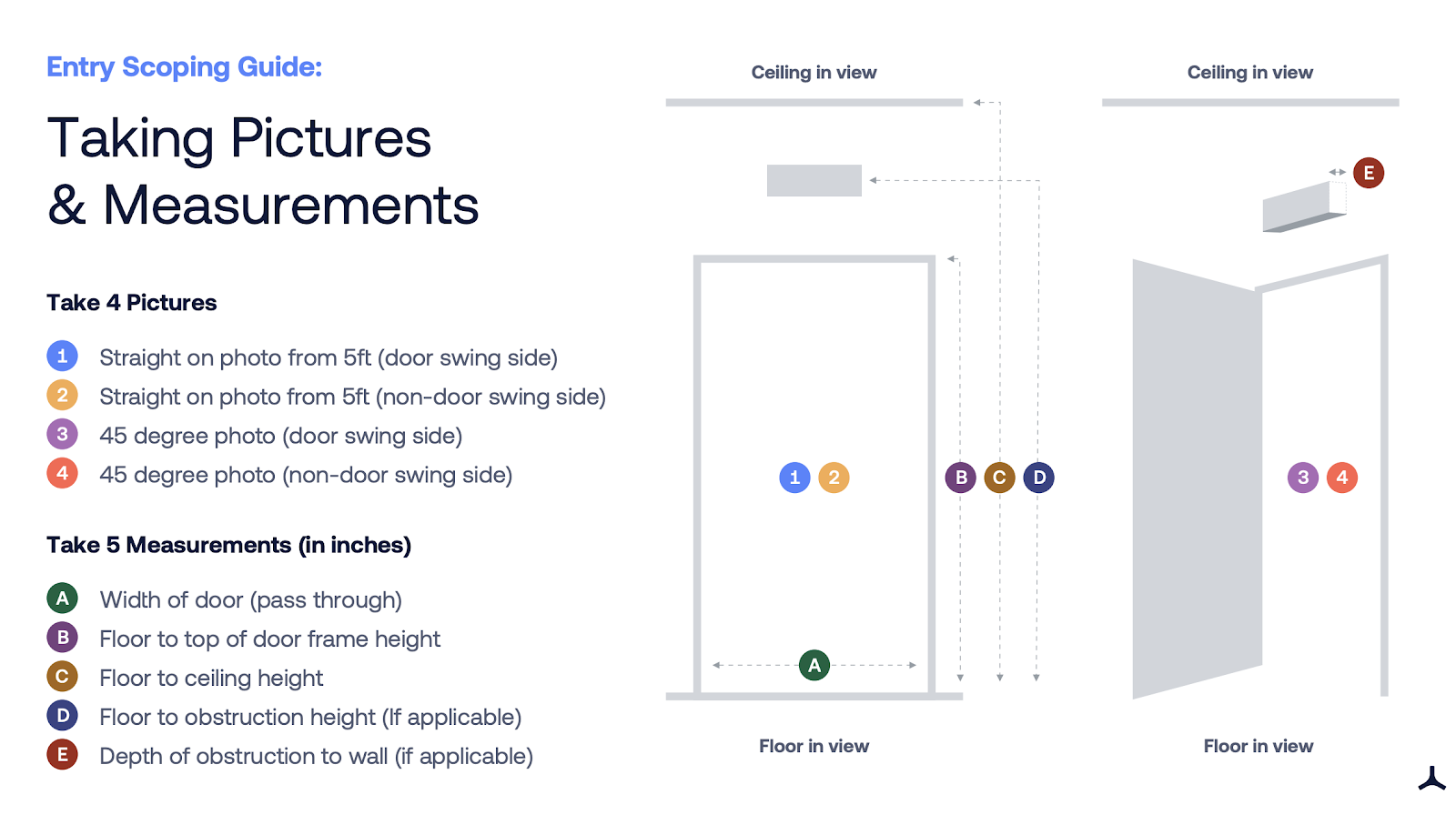

Guide to taking photos and measuring doorways to scope for the Entry sensor

Important note: Capture both the ceiling and floor in each photo

Examples of good photos

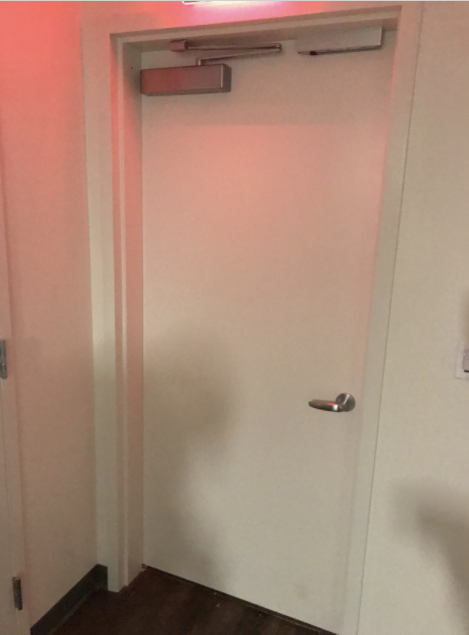

Picture shows:

• full width of doorway
• height of doorway
• ceiling
• obstructions
• surrounding environment
• walls bounding the doorway

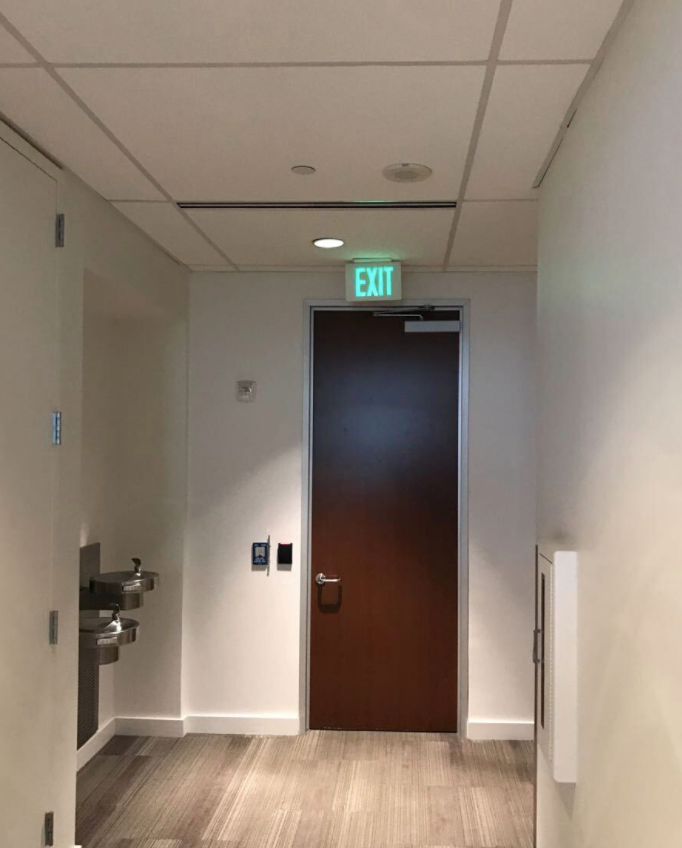

Picture shows:

• depth of door frame
• width of doorway
• height of doorway
• obstructions above the door
• surrounding environment

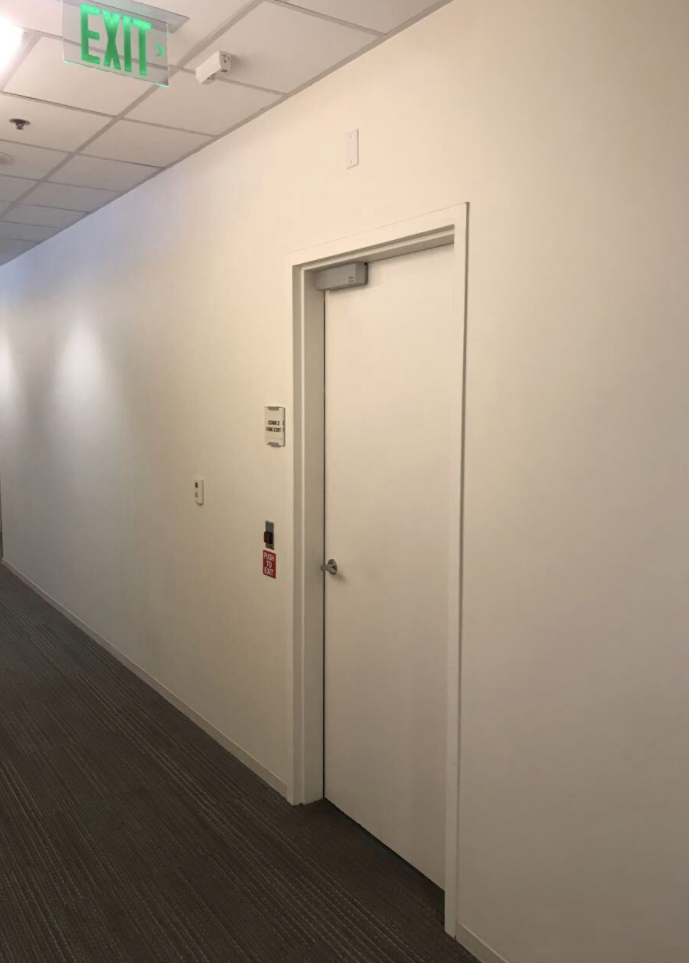

Picture shows:

• full width of doorway
• height of doorway
• ceiling
• mounting surface
• surrounding environment
• walls bounding the doorway

Examples of photos that don't meet requirements

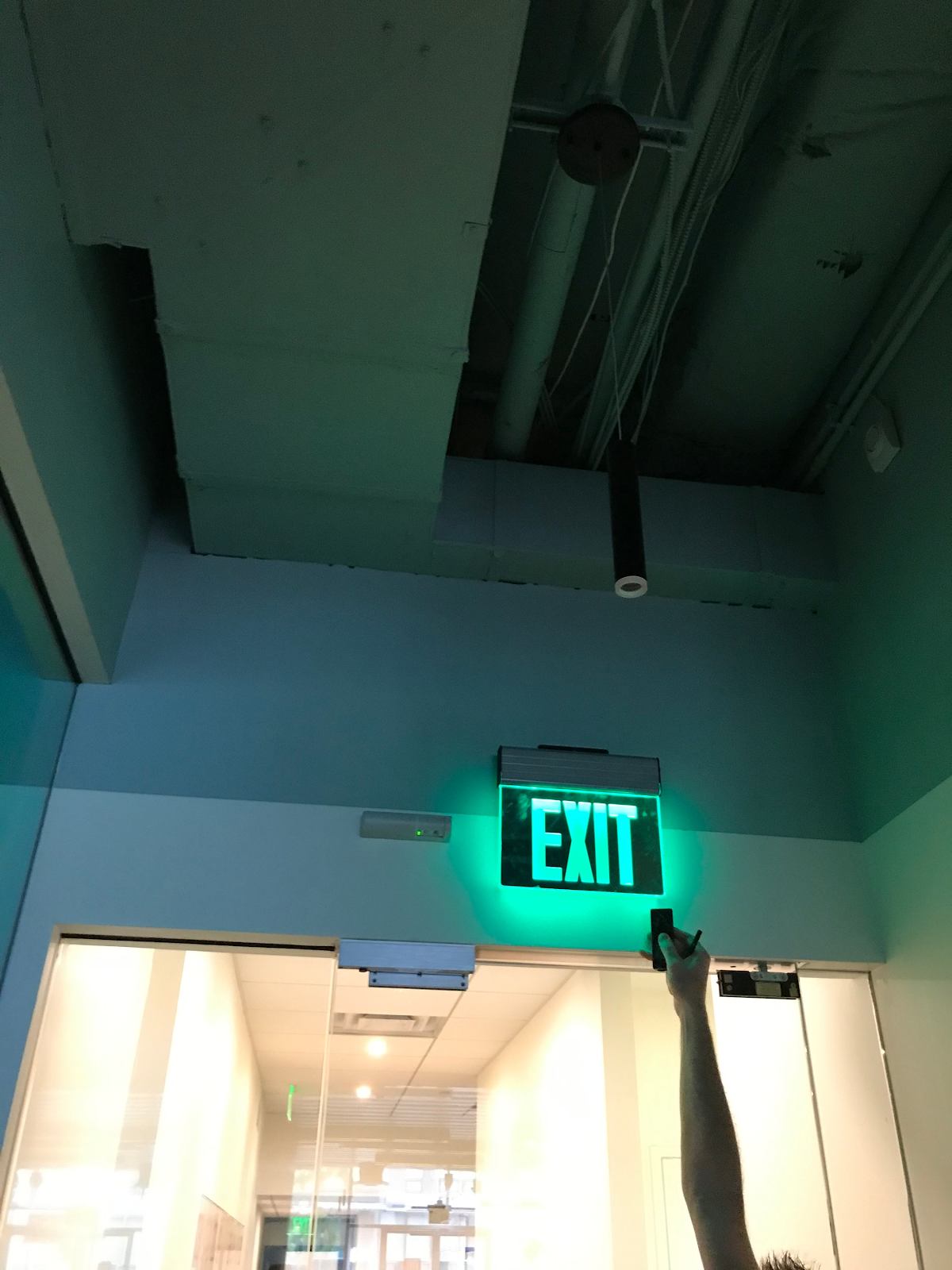

Picture doesn't show:

• top of doorway
• ceiling or wall surface we can mount to

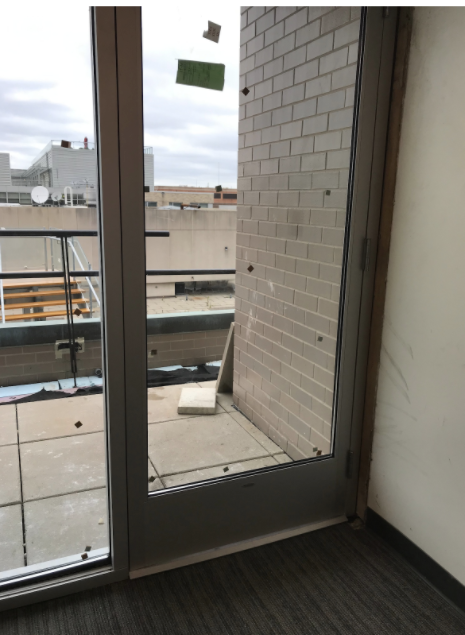

Picture doesn't show:

• ceiling and obstructions above the threshold
• surrounding environment or scale

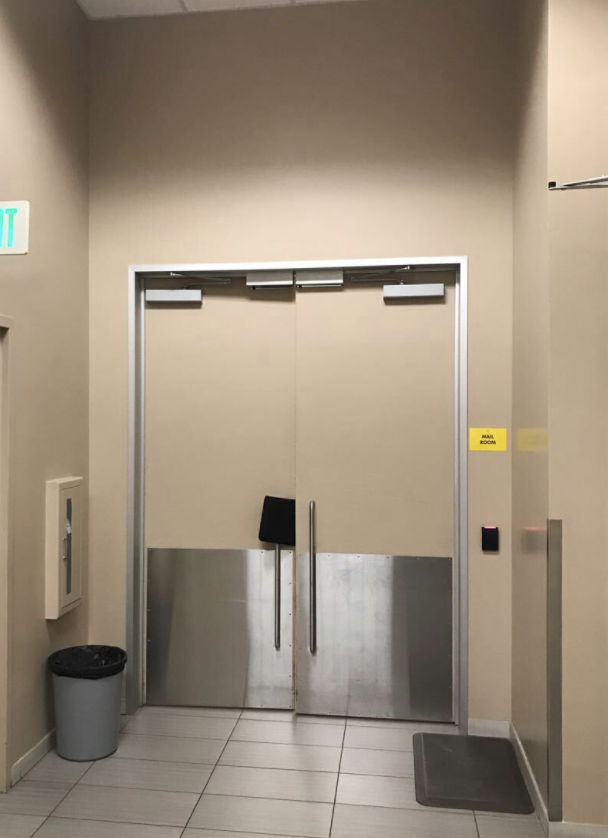

Picture doesn't show:

• full doorway
• surrounding environment or scale
